Category: Beacon Ownership

  • Beacon FAQ

    What is a Cospas-Sarsat beacon?

    A Cospas-Sarsat beacon, also called a distress radio beacon or emergency beacon, is a radio transmitter that can be activated in a life-threatening emergency to summon assistance from government authorities.

    A beacon designed for use in an aircraft is known as an Emergency Locator Transmitter (ELT). One designed for use aboard a marine vessel is called an Emergency Position-Indicating Radio Beacon (EPIRB). And one that is designed to be carried by an individual is known as a Personal Locator Beacon (PLB). Sometimes PLBs are carried aboard aircraft or vessels, but you must check with local authorities about the circumstances under which this is permitted. Some ELTs (often older models) transmit only a legacy analogue signal on 121.5 MHz or 243 MHz. Cospas-Sarsat does NOT monitor those frequencies and such beacons rely on being received only by nearby aircraft or rescue personnel. For satellite reception of alerts by Cospas-Sarsat the beacon must be a model that transmits at 406 MHz.

    How does a distress beacon work?

    When a distress beacon is activated, it transmits a signal that can be detected by satellites. As the satellites orbit the earth, they “listen” for any activated beacons and carry the beacon signals to ground stations that compute their positions and report to rescue authorities.
    For more details see “Cospas-Sarsat System” (Public/System Overview).

    What is a Hex ID, and where can I find mine?

    The Hex ID is a 15 hexadecimal character string (valid range: numbers 0 through 9 and letters A through F), referred to as the beacon 15 Hex Identification, or 15 Hex ID. Your beacon’s 15 character Hex ID uniquely identifies your 406-MHz beacon and is encoded in the message your beacon transmits to search and rescue services if your beacon is activated. When your beacon is activated satellites will detect the transmission and relay the distress alert to search and rescue services. The Hex ID contains the country code and other identification features relative to the carrier which are dependent upon the coding protocol used. The Hex ID can identify the carrier using the radio call sign, a serial number, aircraft registration marking, etc.
    You should find your beacon’s Hex ID on a label affixed to the beacon or in the beacon documentation provided by your beacon manufacturer. If you have difficulty locating your beacon Hex ID, contact your beacon manufacturer.

    What happens if I do not register my emergency beacon?

    The System will still work but not registering your beacon defeats the purpose of owning a beacon and taking advantage of current technology. The Cospas-Sarsat System is designed to provide both identification and location information. Identification information such as the radio call sign or aircraft tail number can be encoded into the emergency beacon. If the beacon is encoded with a serial number, it is very important that it be registered as no information about the beacon user can be encoded in the beacon’s message. Furthermore some countries mandate registration by law and there may be penalties for not registering.

    As long as the System is able to obtain a position (either using Doppler processing or through the use of beacons that can transmit their position as part of the 406-MHz message), search and rescue personnel can respond to a distress signal. However, when a position is not available, search and rescue personnel have to rely on registration information. It is in these cases that rescue could be delayed until the System can obtain a position. Even with a position, the response may be delayed until the search and rescue personnel determine the nature of the distress and their capability to respond to the location of the distress. When registering a beacon, try to list two contacts, one of which the search and rescue personnel would be able to reach at any time of the day.

    Beacons can be stolen and activated maliciously and they can be activated accidentally if not cared for in a proper manner. In such circumstances the registration data can be used to contact the owner and/or emergency contacts to establish that an emergency situation does not exist. This can assist the owner to remedy a fault if one exists and it can assist the SAR authority to take appropriate action if no emergency exists. This means that your registration can help avoid the unnecessary use of valuable SAR resources and putting rescuers lives at risk.

    What if I accidentally activate my beacon?

    The most important thing is to turn it off and let the Search and Rescue Authorities know as soon as you can. There is no penalty for accidentally activating your beacon.

    We have multiple beacons. What should we do if our group is in a situation with multiple beacons that are available to be activated?

    The guidelines and examples available on this page: Guidance on Multiple Beacon Activation provide advice on activating Cospas-Sarsat beacons if multiple Cospas-Sarsat beacons are available in a distress situation.

    How should I maintain my beacon and battery?

    406-MHz distress beacons are safety-of-life devices. They are complex radio transmitters and their proper functioning in an emergency depends on proper maintenance. You MUST maintain your 406-MHz distress beacon in accordance with the instructions of the manufacturer. For aviation ELTs and marine EPIRBs, the requirements and procedures for maintenance of beacons and their external components are generally subject to national regulations or international standards. Beacon maintenance requirements also may be regulated by local authorities. Typically, maintenance procedures include, but are not limited to:

    Periodic physical inspections,
    Periodic beacon self-tests,
    Battery replacement accordingly to manufacturer instructions,
    Periodic technical inspection and service by a service center approved by the beacon manufacturer agents.
    It is important that beacon owners perform regular visual inspections of their beacons to look for physical damage, such as cracks or corrosion, in the case or other parts which could cause false activation of the beacon and/or cause the beacon to fail when activated in a real emergency.

    The beacon self-test feature, which is described in the beacon owner’s manual, is designed to verify proper operation of beacon electronics by checking all key features, including the radio transmitter and battery. Beacon self-tests can be performed by the beacon owner. Self-tests should be performed at regular time intervals, as recommended by the beacon manufacturer. Immediately contact the beacon manufacturer if a self-test indicates a failure. Avoid conducting self-tests more frequently than recommended by the manufacturer, unless you have reason to suspect a problem with a beacon. For battery-powered beacons, activating the beacon self-test consumes a small amount of the beacon’s battery energy. Therefore, excessive self-test activations may prematurely deplete the beacon battery, causing inadequate battery performance in an emergency.

    Battery replacement must be performed no later than the date indicated on the beacon label, or after activation in an emergency. During each routine inspection, verify the time remaining until replacement is required. You may also need to replace the battery earlier than indicated on the label if you have conducted an excessive number of self-tests. A healthy battery is necessary to ensure proper functioning, and sufficient operating life, of a beacon if it is activated in an emergency.

    Always use replacement batteries that have been approved as a part of the original Cospas-Sarsat type approval, and as directed by the beacon manufacturer or one of its approved service centers. Use of after-market batteries not approved by the manufacturer (purchased, for example, from some on-line vendors) could result in inadequate beacon performance during an emergency.

    If you have questions about the maintenance of, or battery replacement for, your beacon, please consult the beacon manufacturer using contact information in the user manual. You also may find contact information for beacon manufacturers on the “Contact Lists” tab of our Professionals home page.

  • How Do I Select and Purchase a 406-MHz Cospas-Sarsat Beacon?

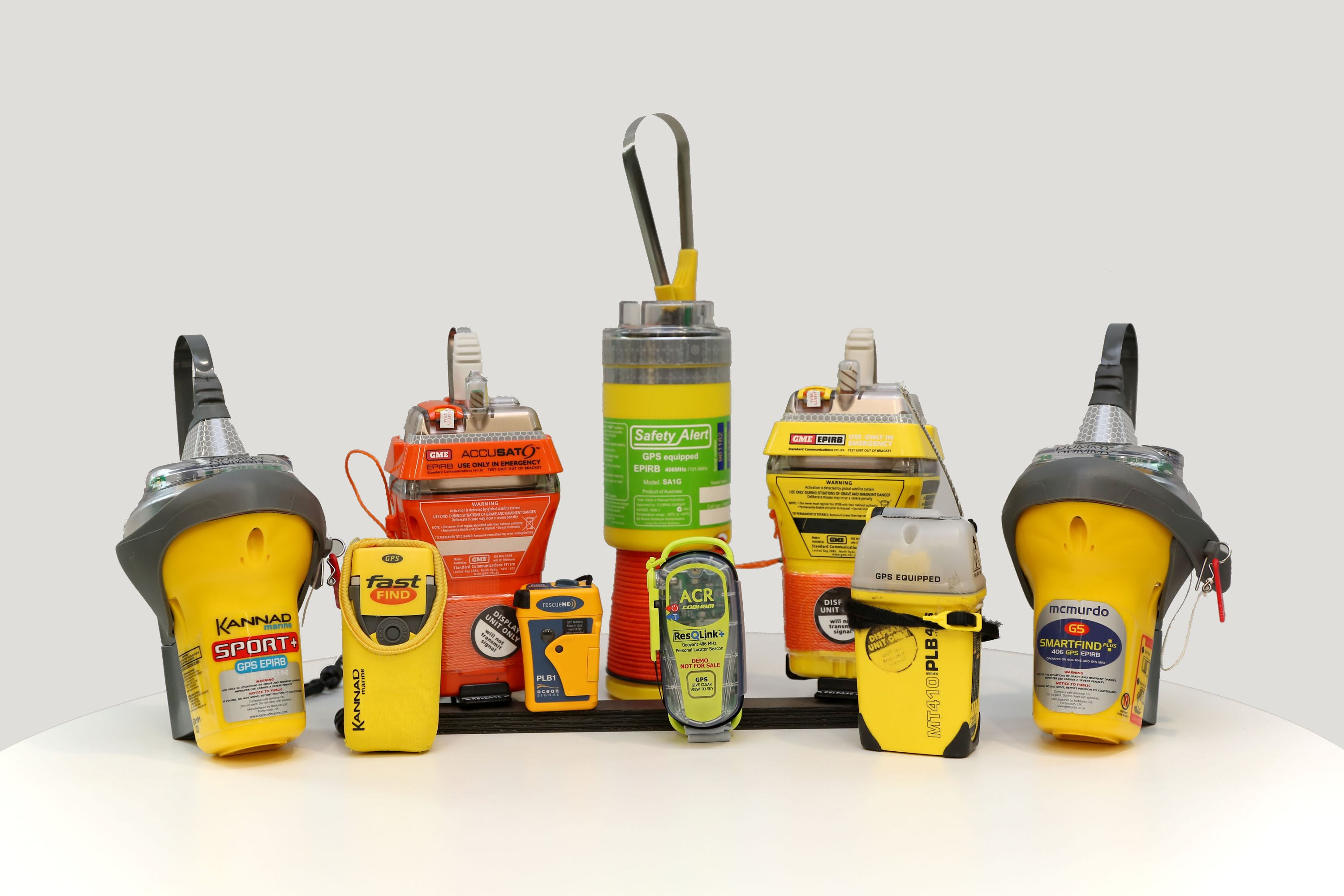

    How Do I Select and Purchase a 406-MHz Cospas-Sarsat Beacon?



    Beacons are manufactured, marketed and sold competitively by several different companies through a variety of vendor chains.

    Cospas-Sarsat (working with the manufacturer and independent laboratories) rigorously tests and “type approves” beacon models before they go into production to ensure that production beacons sold to the public can be expected to operate under a variety of extreme conditions.

    The International Cospas-Sarsat Programme does not itself manufacture, market or sell beacons. A list of manufacturers is available at our Professionals website under “Contact Lists” (Pro).

    The first consideration in selecting a beacon is the type of environment in which you expect to use it. A 406-MHz beacon designed for use in an aircraft is known as an Emergency Locator Transmitter (ELT).[1] One designed for use aboard a marine vessel is called an Emergency Position-Indicating Radio Beacon (EPIRB). And one that is designed to be carried by an individual (such as while hiking/trekking) is known as a Personal Locator Beacon (PLB). Sometimes PLBs are carried aboard aircraft or vessels, but you must check with local authorities about the circumstances under which this is permitted.

    Beacons have different features for activation in an emergency. Most beacons can be activated manually by a person pressing a button. Most ELTs are designed to be activated automatically by a physical shock, such as in a crash, and most EPIRBs are designed to be automatically activated by contact with water. Some EPIRBs are designed to be held in a bracket outside of the vessel such that it will “float free” and activate automatically if the vessel sinks. PLBs usually have only a manual activation capability. There are many variations of activation and deployment features for beacons to suit many, many different situations and needs, so you should evaluate these features carefully.

    During type-approval testing, beacon models are evaluated to one of two temperature extremes: -40 degrees Celsius (which receives a Class 1 type approval) and -20 degrees Celsius (which receives a Class 2 type approval).

    Many beacon models not only transmit a distress message on 406 MHz for satellite reception, they also transmit a lower powered signal on 121.5 MHz as a reference for local search teams to “home” in on the signal once they arrive near the location calculated for the beacon. In some countries such a “homing transmitter” is a mandatory beacon feature.

    Although the Cospas-Sarsat System is designed to independently locate activated distress beacons with good accuracy, many beacons now also are equipped with an integrated receiver chip for the beacon to determine its own location using signals from global navigation satellite systems (GNSS), such as GPS, GLONASS or GALILEO. If the integrated receiver chip is able to calculate a location for the beacon, that location is reported in the distress message transmitted from the beacon. GNSS-equipped beacons provide helpful redundancy in determining the beacon location and in certain circumstances can reduce the time needed for Cospas-Sarsat to locate the beacon.

    Some aviation ELTs and marine EPIRBs may have an interface that allows the beacon to have location data reported to it by the avionics or marine electronics so that the information is continuously updated, stored and available to be transmitted if the beacon is activated.

    A list of type-approved beacon models with some details about model features is available on our Professionals website under “Approved Beacon Models” (Pro/Beacons/Beacon Information).

    A few beacons, with exceptional characteristics, may not meet all of the standards for type-approval, but still may be approved for use with Cospas-Sarsat by virtue of a “letter of compatibility”. Such beacons may be perfectly suitable for your particular needs, but you will need to take extra care to be certain that is the case.

    While Cospas-Sarsat (working with the manufacturer and independent laboratories) rigorously tests and “type approves” beacon models before they go into production to ensure that production beacons sold to the public can be expected to operate under a variety of extreme conditions, Cospas-Sarsat type approval alone does NOT qualify the beacon for sale or use in any particular country, nor determine whether the beacon satisfies local and international regulatory requirements regarding aircraft and vessels. You must check with your local authorities about the number and types of beacons that may be required on your aircraft or vessel. Some of this information may be found in the “Beacon Regulations Handbook” (Pro/Beacons/Beacon Information).

    If your aircraft/vessel makes international voyages, you may be subject to specific requirements established by the International Civil Aviation Organization (e.g., Annex 6, Part 1 of the ICAO Convention) or the International Maritime Organization (e.g., Chapter IV of the IMO’s Convention on Safety of Life at Sea).

    Beacon manufacturers establish their own marketing and retailing chains. Aviation ELTs usually can be purchased at aviation equipment supply stores or service facilities. Similarly, marine EPIRBs usually can be purchased at marine supply stores or service facilities. PLBs usually can be purchased at sporting-goods and outdoor-goods stores. Beacons of all types can be purchased from vendors on the internet. Please note that if you purchase a beacon from a vendor in a country different from the one where your aircraft/vessel is flagged, or different from your country of residence, in order to successfully register the beacon you may need to have the “country code” that has been electronically encoded in the beacon reprogrammed to a new (your current) country code by an authorized service facility at an additional cost.




    [1] Some ELTs (often older models) transmit only a legacy analogue signal on 121.5 MHz or 243 MHz. Cospas-Sarsat does NOT monitor those frequencies and such beacons rely on being received only by nearby aircraft or rescue personnel. For satellite reception of alerts by Cospas-Sarsat the beacon must be a model that transmits at 406 MHz.

  • Where Can I Buy an RLS-Enabled Beacon?

    What is an RLS-Enabled Beacon?

    An RLS-enabled beacon is a beacon that has the Return Link Service feature.  The Return Link Service feature is an indication (e.g., a light or text display) on the beacon that confirms to the user that the distress signal from the beacon has been received and localized by the Cospas-Sarsat system and forwarded to government authorities for action.  It does NOT mean that a rescue has yet been organized/launched, only that the distress alert has been received and routed to the appropriate government agencies.   For further information about how the Return Link Service feature works, and performance expectations, you should watch the Cospas-Sarsat video on RLS and read the related sections of the SAR/Galileo Service Definition Document.

    Every beacon includes as part of the transmitted distress message a preprogrammed “country code”, that normally indicates the national residency of the owner and/or the country/territory where the beacon was purchased.  Some countries/territories allow RLS-enabled beacons (using an RLS “protocol” for the transmitted distress message) to be preprogrammed with their “country code”, and sold and used on their territory, and some other countries/territories do not.  (However, any properly programmed beacon will work anywhere on Earth.)

    Please Register your Beacon

    Cospas-Sarsat strongly recommends that you register your beacon.  It only is possible to register a beacon in the registry operated by the country matching the country code programmed into the beacon (or the International Beacon Registration Database (IBRD) if the country uses it for their registrations).  (For example, it only is possible to register a beacon with a French country code in France’s registry.  However, owners of Belgian-coded beacons must register in the IBRD.)  Visit Where to Register My Beacon to see where you can register your beacon

    Where Can I Buy an RLS-Enabled Beacon?

    The countries/territories that have informed Cospas-Sarsat that RLS-enabled beacons are allowed to be preprogrammed with their “country code”, and sold and used on their territory are listed below, together with notes about any limitations and with links to country/territory-specific regulations as they have been reported to Cospas-Sarsat.  Because there may be a delay in countries informing Cospas-Sarsat, some countries not on this list may also allow RLS-enabled beacons.  (It is also recommended to check directly with the national/territorial authorities for the latest information on what is allowed.  Your local beacon vendor may be able to tell you where to find this information.)

     (Please see countries’ S.007 webpages.)

    Country or Territory Limitations Country Code (MID) Specific
    Country Regulations
    Algeria Allowed for all beacon types 605 S.007
    Argentina Allowed for all beacon types 701 S.007
    Australia Allowed for all beacon types 503 S.007
    Brazil Allowed for all EPIRBs and PLBs  only 710 S.007
    Canada Allowed for all beacon types 316 S.007
    Chile Allowed for all beacon types 725 S.007
    Croatia Allowed for all beacon types 238 S.007
    Cyprus Allowed for all beacon types 209 S.007
    Cyprus Allowed for EPIRBs only 210, 212 S.007
    Denmark  Allowed for all beacon types  219, 220 S.007
    Faroe Islands (DK) Allowed for all beacon types 231 S.007
    Finland Allowed for EPIRBs only 230 S.007
    France Allowed for all beacon types depending on the use. Restrictions may exist per Country Code (see *) 226*, 227, 228*, 329, 347, 361, 501*, 540, 546, 578, 607*, 618*, 635*, 660, 745 S.007
    Germany  Allowed for EPIRBs and ELTs only 211, 218 S.007
    Greece Allowed for all beacon types 237, 239, 240, 241 S.007
    Greenland (DK) Allowed for all beacon types 331 S.007
    Hong Kong (CHN) Allowed for EPIRBs and PLBs only 457 S.007
    Iceland Allowed for all beacon types 251 S.007
    Ireland Allowed for EPIRBs and PLBs only 250 S.007
    Israel Allowed for all beacon types 428 S.007
    Italy Allowed for all beacon types 247 S.007
    Japan Allowed for EPIRBs only 431, 432 S.007
    Latvia Allowed for ELTs and PLBs only 275 S.007
    Liechtenstein Allowed for all beacon types 252 S.007
    Moldova Allowed for ELTs only 214 S.007
    New Zealand Allowed for all beacon types 512 S.007
    Norway Allowed for all beacon types 257, 258, 259 S.007
    Peru Allowed for EPIRBs and ELTs only 760 S.007
    Poland Allowed for all beacon types 261 S.007
    Qatar Allowed for all beacon types 466 S.007
    Russian Federation Allowed for EPIRBs and ELTs only 273 S.007
    Saudi-Arabia Allowed for all beacon types 403 S.007
    Serbia Allowed for all beacon types 279 S.007
    Singapore Allowed for all beacon types 563, 564, 565, 566 S.007
    Spain Allowed for EPIRBs only, with restrictions 224, 225 S.007
    Sweden Allowed for all beacon types 265, 266 S.007
    Switzerland Allowed for all beacon types 269 S.007
    Taiwan (Ch. Taipei) Allowed for PLBs only 416 S.007
    Türkiye Allowed for all beacon types 271 S.007
    United Arab Emirates Allowed for all beacon types 470, 471 S.007
    United Kingdom Allowed for all beacon types 232, 233, 234, 235 S.007
    USA Allowed for all beacon types 366, 367 S.007
    Viet Nam Allowed for all beacon types 574 S.007

     Last updated 24 May 2024

  • Why Should I Register My Beacon?

    Why Should I Register My Beacon?

    Registering your beacon may make the difference between life and death. By registering your beacon you allow search-and-rescue authorities in an emergency to retrieve crucial information about you, your aircraft or vessel, and people who can provide valuable information about you (your emergency contacts).

    Register your beacon by visiting https://406registration.com.

    To see a news story and video about the importance of registering your beacon visit https://www.newshub.co.nz/home/new-zealand/2020/02/survivor-s-plea-register-your-emergency-beacons.html.

    Your registration information is maintained in databases that are operated by governments and/or the Cospas-Sarsat Secretariat (depending on choices made by the government associated with the “country code” programmed into your beacon). When you visit www.406registration.com and enter your beacon’s identification (ID) code you will be instructed about how you need to register your beacon (depending on the beacon’s “country code”). Registration is a mandatory requirement in many countries, and also for certain aircraft that are subject to the rules of the International Civil Aviation Organization and for certain vessels that are subject to the rules of the International Maritime Organization.

    Under NO circumstances can the Cospas-Sarsat Secretariat register a beacon by telephone, facsimile, e-mail or mail. You must go to www.406registration.com to see how your beacon can be registered.

    (Note that, in addition to registration, local or international regulations may require that your aircraft or vessel identification be electronically encoded into your beacon so that it is transmitted in the alert message when your beacon is activated. This only can be done by a properly qualified service facility. Check with the manufacturer of your beacon.)

    The information about your beacon that you place in the registration databases is for use by search-and-rescue authorities, and is viewable only by them, associated government agencies and the Cospas-Sarsat Secretariat. NO information that you place in the registration databases is made available to commercial entities and it is NOT used for any commercial purpose whatsoever.

    Depending on the database in which you are instructed to register your beacon (which depends on the “country code” programmed into the beacon), you will be asked to supply certain kinds of information. This may include:

    • The beacon’s identification, which is a hexadecimal character string (composed of the characters 0-9 and A-F) found on a label attached to every beacon. You will always be asked for this beacon ID because it is the best (and often only) way to uniquely distinguish your beacon from all others.
    • Your name, address, telephone number and other contact details.
    • The identification and description of your aircraft if your beacon is an aviation ELT, or your vessel if your beacon is a marine EPIRB, and its home port.
    • The kinds of survival equipment and communications equipment normally carried.
    • Emergency contact information for those organizations or persons who may be able to provide additional details about aircraft/vessel characteristics, travel plans, supplies likely carried by those in distress, etc.

    When a distress alert message from your beacon is relayed to a national-government Search-and-Rescue Point of Contact (SPOCs) that has the responsibility to react to the alert, the information that you have provided during beacon registration is also provided to the rescue authorities. It is easy to understand how important this information can be to rescue authorities as they are organizing a search-and-rescue effort. Also, by attempting to contact you using your contact information, or contacting those that you have listed as emergency contacts during registration, rescue authorities are better able to determine if the distress alert is real or inadvertent. If the alert is real, they will have information that improves the chances of them finding you and saving your life. If the alert is inadvertent, it means that limited search-and-rescue resources are not unintentionally diverted from someone in real distress.

    Just as important as registering your beacon when you first acquire it, is the need to update the information when your circumstances change. If you move the beacon to a different aircraft/vessel, or if the contact information for yourself or your emergency contacts change, you must update this information in the registration database. It is strongly recommended that you take a few minutes at least every two years to review and update the information in the registration database. This is a mandatory requirement in some countries. Likewise, if you sell or transfer your beacon to someone else, you need to indicate this in the registration database and encourage the new owner to properly register the beacon for themselves.

    If you decide to dispose of an old, unneeded beacon you need to be careful to take certain steps. Do NOT merely toss the beacon in a garbage or rubbish bin. If you do this, over time the casing and electronics could degrade, possibly causing the beacon to begin transmitting a false alert from, for example, a garbage heap. This could divert limited search-and-rescue resources from a real emergency, putting other lives at risk. Instead you must have the battery removed, you must have the beacon clearly labeled on the outside that it has been deactivated (so that no one mistakenly tries to use it in a real emergency), AND you must update your information in the registration database to indicate that you have disposed of the beacon. When possible, the components of your old beacon should be properly recycled.

  • Testing Your 406-MHz Beacon



    Always test your beacon according to the instructions of the beacon manufacturer. Always ensure that you properly register your beacon using the hexadecimal (0-9 and A-F) identification (“Hex ID”) printed on the beacon before beginning any testing (so that if a false alert accidentally is transmitted, the authorities will know who to contact before dispatching search-and-rescue services. Most beacons have a special switch (button) or a special switch-position setting to use for testing, and this should be the only switch/setting used for routine testing. Activating a 406-MHz beacon with the distress switch for even a very short time will generate a Cospas-Sarsat distress alert message that will be relayed to search-and-rescue services for immediate action. Older, legacy 121.5/243-MHz distress beacons can be activated briefly for testing at defined time periods (for example, during the first five minutes of each hour). THIS IS NOT THE CASE FOR 406-MHZ BEACONS. 406-MHz beacons are digitally coded and transmit distress signals without delay. Therefore, 406 MHz beacons must not be activated using the distress switch except in real distress situations or unless special prior arrangements have been made with the Cospas-Sarsat Mission Control Centre (MCC) that services your region, to ensure that no search-and-rescue resources will be deployed.

    Warning!!! Activating a beacon for reasons other than to indicate a life-threatening distress situation or without the prior authorization from a Cospas-Sarsat MCC is considered an offence in many countries of the world, and could result in prosecution.

    How Should I Test My 406-MHz Beacon?

    Always test your beacon according to the instructions of the beacon manufacturer. Always ensure that you properly register your beacon using the Hex ID printed on the beacon before beginning any testing. 406-MHz beacons are designed with a self-test capability that is activated by a separate test switch or switch-position setting for evaluating key performance characteristics. Initiating the beacon self-test function will not generate a distress alert in the Cospas-Sarsat System, and the self-test can be performed at any time (i.e., it is not restricted to certain times during an hour). However, it will use some of the beacon’s limited battery power, and should only be used in accordance with the beacon manufacturer’s guidance for the number of tests to be performed over the lifetime of the beacon. Excessive testing may mean that the beacon-battery reserve will be inadequate for full performance during a real distress situation. (Though the self-test function will not generate a 406-MHz distress alert in the Cospas-Sarsat System, some self-test functions may briefly transmit a 121.5-MHz “homing” signal. This should be taken into consideration in deciding where and when to conduct a self-test of your beacon.) If you have questions regarding your beacon’s self-test mode, contact your beacon manufacturer before attempting a self-test.

    If you inadvertently activate the beacon in its distress mode by using the distress switch (or by automatic means, such as water contact by an EPIRB with such an automatic feature), deactivate the beacon (if it has a deactivation function) AND contact the nearest Cospas-Sarsat MCC or your local Rescue Coordination Center (RCC) as soon as possible to request cancellation of the distress alert. (Deactivating the beacon alone does NOT cancel the distress alert that already has been transmitted by the beacon and received by Cospas-Sarsat. That is why you must call the appropriate MCC or RCC.)

    “Live” Beacon Testing

    In rare circumstances there may be a need to activate a 406-MHz beacon in its distress mode for test purposes. Regardless of the beacon’s location or the duration of activation, a 406-MHz beacon likely will be detected by Cospas-Sarsat and the resulting distress-alert message will be routed to an MCC and RCC for search-and-rescue resource deployment. Consequently, careful coordination is required to ensure that the appropriate MCCs are informed in advance of the planned test transmission. (A 121.5-MHz “homing” signal is likely also to be transmitted at the same time during a “live” test, and this must also be taken into consideration.) Beacons rarely should require testing in their operational (distress-alert) mode.

    Requests to conduct a live beacon test should be directed to the Cospas-Sarsat MCC that services the location in which the test is planned and the Cospas-Sarsat MCC that supports the country code programmed into the beacon (if different).

    There are more than 1.5 million Cospas-Sarsat 406-MHz distress beacons in operation. In view of the number of beacons in service, coupled with the effort and resources required to coordinate a live beacon test, beacon owners should be aware that authorization to activate a beacon for testing will only be granted in exceptional circumstances.

    Aircraft Cockpit Testing of Distress Beacons by Aircraft Maintenance Facilities

    Generally, remote cockpit activations are performed on initial installation and during maintenance work on the ELT itself. Routine ELT testing (for example, by cockpit crews), REGARDLESS OF THE TIME DURING AN HOUR, should be undertaken only by using the test-switch position intended for that purpose. If activation of the distress-switch function is required, electromagnetic shielding of the beacon antenna should be considered prior to the “live” distress-switch-activated test.

    Live distress-function testing of a 406-MHz ELT from the cockpit may be performed taking into account that if the switch is in the distress-alert position for more than 5 seconds, a distress transmission may be initiated, and the nearest MCC, RCC and Air Traffic Services (ATS) Centre for the location of the alert transmission must be advised so that no search-and-rescue resources will be deployed. When performing a live distress-alert-function test, also consider that a 121.5/243-MHz homing transmission may also be activated as part of this test, and precautions must be taken to ensure that the 121.5/243-MHz signal is not falsely interpreted by other aircraft or airport facilities as a distress alert (this is the one situation in which it may be advisable to test in the first five minutes of an hour).

    Some countries have regulations that are more restrictive. Please check with the appropriate regulatory authority regarding the time and duration of the test.

    The Australian Maritime Safety Authority and the NOAA Satellite and Information Service (USA) provide comprehensive information on beacon testing.





  • What Happens When I Activate My Beacon?

    1.    User activates beacon



    When your beacon is activated, either by a person manually pressing a button, or automatically (e.g., an aircraft ELT activated by a physical shock, such as in a crash, or a ship’s EPIRB activated by contact with water) it begins to transmit a series of very short, digitally-coded signals (“bursts”) that indicate that you are in distress.  Though the bursts are kept short to prolong the life of the beacon battery, each burst sends a message that identifies the beacon, and may include information about your aircraft or vessel, and your location if that information is available from a navigation device in the beacon or attached to it.

    To reach the Cospas-Sarsat satellites the beacon must have a relatively unobstructed view of the sky.  A submerged beacon, or one with its antenna blocked by the body of an aircraft or vessel, is unlikely to be received by the satellites.  Similarly, it may take longer to detect a beacon activated, for example, in a canyon as there may be a delay before a satellite passes within view overhead.




    2.    Satellite detects the beacon


    Some Cospas-Sarsat satellites only relay the distress message transmitted by the beacon.  Other satellites relay the message and also gather details about the signal that will enable computers on the ground to estimate the beacon’s location.  Different kinds of satellites may be visible from your location at different times and, in remote areas, there can be an additional delay in the distress signal being relayed to a ground station for processing.


    3.    Beacon signal is transferred from satellite to LUT

    Once detected by the Cospas-Sarsat System and relayed to a ground station (government-owned dish antennas and associated equipment called a Local User Terminal or LUT, that tracks the satellites), powerful computers analyze the signal from your beacon to estimate its location.




    4.    LUT transfers the beacon message and location data to its associated MCC



    The location estimate calculated by the LUT ground station (along with any location information that may have been transmitted from the beacon in its distress message), and all other information sent in the beacon distress message is sent by the LUT ground station to an associated Mission Control Centre (MCC), which performs the task of routing the distress message and the location estimates to the proper authorities.

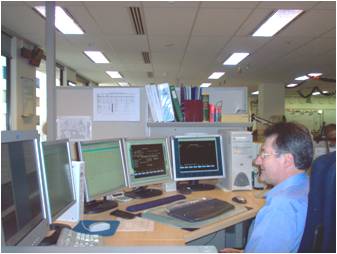

    5.    The MCC transfers the Cospas-Sarsat alert message to two places:

    The Mission Control Centre (MCC) sends the alert message and estimated location to the governmental authority responsible for search and rescue in the area where the beacon is believed to be.  The message transmitted from the beacon also includes a “country code” that normally indicates the origin of the beacon. (For a ship or aircraft this normally would be the nation under which it is “flagged”.  For a PLB carried by a person, the code normally would be that for the country where the PLB was purchased or where the owner has registered the beacon.)  The alert message information and the location estimates also are sent to the government associated with the country code transmitted by the beacon.  In this way the authorities closest to the distress are alerted, as are the authorities of the nation of origin of the aircraft, vessel or person.


    6.    The rescue authorities take action:

    All of the information in the beacon distress message, along with the location estimates, ends up at national-government Search-and-Rescue Points of Contact (SPOCs) that have the responsibility to react to distress alerts.  Crucial to the job of launching a rescue effort is knowing as much about the aircraft/vessel/person as possible, and having accurate emergency contact information for organizations or people who may be able to provide additional details about aircraft/vessel characteristics, travel plans, supplies likely carried by those in distress, etc.  Rescue authorities retrieve this crucial information from beacon registration databases.  That is why it is extremely important that you ensure that your beacon is properly registered with the correct governmental authorities.  Register your beacon by visiting www.406registration.com.



  • National Beacon Regulations for the Use of PLBs

    PLBs (Personal Locator Beacons) are intended for use by an individual person (i.e., not necessary linked to a ship or an aircraft like EPIRBs and ELTs). They can be used in any environment (e.g., on land, at sea and in aircraft) and installed in a mobile unit (e.g., vessel, aircraft). Carriage of PLBs depends on national regulations. Generally, PLBs can only be activated manually, with the exception of certain PLBs specifically designed for military use.

    Note: National beacon regulations can be found on the Cospas-Sarsat Professional website in System document C/S S.007 (Pro/Documents/Beacon Regulations Handbook).

    Country / Territory

    For terrestrial applications

    In maritime
    environment

    On
    aircraft

    Comments

    Country recognises PLB activations

    Country recognises PLB activations

    Country recognises PLB activations

    Albania

    Y

    Y

    Y

    Algeria

    Y

    Y

    Y

    PLB may not submit for required carriage of ELT or EPIRB
    Argentina

    Y

    Y

    Y

    Australia

    Y

    R

    R

    In a maritime environment, a PLB cannot be used as a substitute for an EPIRB that is required by regulation.

    See Civil Aviation Regulation 252A for rules concerning PLBs on aircraft.

    Austria

    Y

    N/A

    R

     Terrestrial alerts are relayed to Police or Landeswarnzentrale. Appropriate SAR action cannot be guaranteed as no legislation and no formal responsibilities/procedures are available. A mobile telephone, emergency radio network access, emergency telephone or satellite telephone are more suitable for raising the alarm in an emergency for some circumstances.
    Belgium

    Y

    Brazil

    Y

    Y

    Y

    PLB activation is allowed. However, ony PLBs registered in the Brazilian database for ultralight airplanes or as part of an aircraft/ship survival kit will trigger the Brazilian SAR System. Activations other than mentioned above will be relayed to regional Civil Defense offices.
    Canada

    Y

    R

    R

    Response to terrestrial PLB alerts is the responsibility of the provinces and territories. PLBs may not be substituted for the required carriage of ELTs or EPIRBs. PLBs may only be used as supplementary alerting devices in this case. Users are encouraged to note any linkages between PLBs used in maritime and aviation environments to relevant vessel/aircraft data during the registration process.
    Cayman Islands

    Y

    Y

    Y

    Chile

    Y

    Y

    Y

    China (P.R. of)

    Y

    Y

    Y

    Chinese Taipei

    Y

    Y

    Y

    Croatia

    Y

    Y

    Y

    Cyprus

    Y

    Y

    Y

    Denmark

    N

    R

    R

    PLB must be coded as EPIRB (maritime) or ELT (aircraft).
    Estonia

    Y

    Y

    Y

    Faroe Islands (DK)

    N

    R

    R

    PLB must be coded as EPIRB (maritime) or ELT (aircraft).
    Finland

    Y

    Y

    Y

    France

    Y

    Y

    Y

    Germany

    R

    R

    R

    Serial-coded PLBs are not allowed in Germany.
    Greece

    Y

    Y

    Y

    Greenland (DK)

    Y

    R

    R

    PLB must be coded as EPIRB (maritime) or ELT (aircraft).
    Hong Kong, China

    Y

    Y

    N

    The carriage of PLBs on Hong Kong registered aircraft shall meet the Civil Aviation Department requirements on portable electronic devices that can be intentionally or unintentionally transmitting.
    Iceland

    Y

    Y

    Y

    India

    Y

    Y

    Y

    PLBs are currently in use for land and aviation applications. For marine applications, there are no users yet, but there are no restrictions on their usage.
    Indonesia

    Y

    Y

    Y

    Ireland

    R

    R

    R

     All PLBs carried in Ireland (terrestrial or in the maritime environment) must be registered with ComReg. Details available at the following link ComReg PLB online Registration. PLBs must have a serial number beginning with 1F4E
    Israel

    Y

    Y

    Y


    Italy

    Y

    Y

    Y

    PLB may not replace an EPIRB or ELT on-board vessels or aircraft when these are required by national or international rules.
    Japan

    N

    Y

    R

    The use of PLBs for private persons is not permitted in Japan except for PLBs on maritime and aircraft. Land activations are prohibited and subject to penalty by radio law.
    Kenya

    Y

    Y

    Y


    Korea (Rep. of)

    N

    N

    N

    Liechtenstein

    R

    Y

    Y

    Note: Terrestrial Alerts are relayed to Police. Appropriate SAR action cannot be guaranteed as no legislation and no formal responsibilities or procedures are available. A mobile telephone, emergency radio network access, emergency telephone or satellite telephone are more suitable for raising the alarm in an emergency for some circumstances.
    Malta

    Y

    Y

    Y

     Refer to S.L.399.40
    Marshal Islands

    Y

    Y

    Y

    Malaysia

    Y

    Y

    N

    Moldova

    Y

    Myanmar

    N

    N

    N

    Netherlands (The)

    Y

    Y

    Y

    New Zealand

    Y

    Y

    Y

    PLBs are only to be coded with serial number and not MMSI nor registration mark.
    North Macedonia

    N

    N

    N

    Nigeria

    Y

    Y

    Y


    Norway

    Y

    Y

    Y


    Pakistan

    Y

    Y

    Y


    Peru

    Y

    Y

    Y


    Philippines

    Y

    Y

    Y

    There are no regulations yet against the use of PLBs, so CAAP ORCC would accommodate the inclusion of PLBs in the IBRD. Steps are currently being taken to disseminate information on IBRD registration of PLBs.
    Poland

    R

    R

    R

    A radio licence issued by the Polish Office of Electronic Communication is required.
    Qatar

    Y

    Y

    Y

    Russian Federation

    N

    R

    R

    According to the national regulation the PLB could be installed on the vessel or aircraft. In these cases, PLB is coded accordingly as EPIRB with the maritime protocols or as ELT with the aviation protocols.
    Serbia

    Y

    Y

    Y


    Singapore

    Y

    Y

    N


    South Africa

    Y

    Y

    Y

    In terms of the current PLB’s regulations, PLB’s use as replacement for mandatory ELT or EPIRB is not accepted. PLBs are only to be coded with serial number and neither MMSI nor registration mark. Beacon regulations are currently under review and any future departure from current provisions will be reported to the Secretariat.
    Spain

    N

    R

     N or R

    A PLB with a Spanish country code is only allowed by the Spanish Administration in a maritime environment provided that it is associated with a vessel on which it is not mandatory to install an EPIRB. It should be programmed with its MMSI and installed only for use on that vessel.
    Sweden

    Y

    Y

    Y


    Switzerland

    R

    Y

    Y

    Note: Terrestrial Alerts are relayed to Police. Appropriate SAR action cannot be guaranteed as no legislation and no formal responsibilities or procedures are available. A mobile telephone, emergency radio network access, emergency telephone or satellite telephone are more suitable for raising the alarm in an emergency for some circumstances.
    UAE

    Y

    Y

    Y

    United Kingdom

    Y

    Y

    Y

    USA

    Y

    Y

    Y

    Vietnam

    Y

    Y

    Y

    (Y = green, allowed / N = red, not allowed / R = amber, restrictions (see comments).

  • Inadvertent Alerts

    If a beacon is inadvertently activated, the beacon immediately should be turned off if possible. If the beacon does not have an “off” function, it should be shielded from the sky by placing it in a metal container (a solid metal box or a refrigerator, for example).

    Because an alert likely will be received by the satellites even if the beacon was on for only a short time, you should immediately contact the agency in your region responsible for managing Cospas-Sarsat distress alerts to prevent unnecessary assignment of search and rescue resources that may be needed for a real emergency somewhere else. If your region has a Cospas-Sarsat Mission Control Centre in the “Contact Lists” (select “MCC – Mission Control Centre” from the drop-down choices), please notify the centre in your area. Otherwise select “SPOC – SAR Point of Contact” from the “Contact Lists” and notify them of your inadvertent alert. The “Contact Lists” are available under our Professional website.

    There is no penalty for inadvertent activation of a beacon if there was no malicious intent.



    CNES – Beware of False Alerts

  • Change of Beacon Owner Contact Information or Beacon Ownership



    Properly maintaining the registration information about your beacon may make the difference between life and death. Accurate registration information about your beacon allows search-and-rescue authorities in an emergency to retrieve crucial information about you, your aircraft or vessel, and people who can provide valuable information about you (your emergency contacts).

    It is the responsibility of beacon owners to ensure that the information they have supplied in a beacon registry is kept up-to-date. It is strongly recommended that you take a few minutes at least every two years to review and update your information in the registration database. This is a mandatory requirement in some countries.

    If you sell, give or otherwise transfer a beacon to a new owner, you MUST update the information in the registry where your beacon has been registered to indicate this change. You also should encourage the new owner to properly register the beacon for themselves. The new owner of the beacon is required to properly register it with the information associated with the new owner and aircraft/vessel identification. Update your registration information or register a newly acquired beacon at www.406registration.com.

    If a change in beacon ownership is made from an aircraft, vessel or resident of one country to an aircraft, vessel or resident of another country, in most cases the hexadecimal identification (Hex ID) electronically programmed into the beacon will need to be reprogrammed by a qualified service center to change the “country code” programmed into the Hex ID. This is important because that country code determines one of the places where authorities are alerted if you activate your beacon in a distress emergency.

    Also note that when the country code of a beacon is changed, the appropriate database for registering the beacon may also change. Find out where to register your beacon with a new country code at www.406registration.com.

  • Beacon Maintenance



    406-MHz distress beacons are safety-of-life devices. They are complex radio transmitters and their proper functioning in an emergency depends on proper maintenance.  You MUST maintain your 406-MHz distress beacon in accordance with the instructions of the manufacturer. For aviation ELTs and marine EPIRBs, the requirements and procedures for maintenance of beacons and their external components are generally subject to national regulations or international standards.  Beacon maintenance requirements also may be regulated by local authorities. Typically, maintenance procedures include, but are not limited to:

    • Periodic physical inspections,
    • Periodic beacon self-tests,
    • Battery replacement accordingly to manufacturer instructions,
    • Periodic technical inspection and service by a service center approved by the beacon manufacturer agents.

    It is important that beacon owners perform regular visual inspections of their beacons to look for physical damage, such as cracks or corrosion, in the case or other parts which could cause false activation of the beacon and/or cause the beacon to fail when activated in a real emergency.

    The beacon self-test feature, which is described in the beacon owner’s manual, is designed to verify proper operation of beacon electronics by checking all key features, including the radio transmitter and battery. Beacon self-tests can be performed by the beacon owner. Self-tests should be performed at regular time intervals, as recommended by the beacon manufacturer. Immediately contact the beacon manufacturer if a self-test indicates a failure. Avoid conducting self-tests more frequently than recommended by the manufacturer, unless you have reason to suspect a problem with a beacon. For battery-powered beacons, activating the beacon self-test consumes a small amount of the beacon’s battery energy.  Therefore, excessive self-test activations may prematurely deplete the beacon battery, causing inadequate battery performance in an emergency.

    Battery replacement must be performed no later than the date indicated on the beacon label, or after activation in an emergency. During each routine inspection, verify the time remaining until replacement is required. You may also need to replace the battery earlier than indicated on the label if you have conducted an excessive number of self-tests. A healthy battery is necessary to ensure proper functioning, and sufficient operating life, of a beacon if it is activated in an emergency.

    Always use replacement batteries that have been approved as a part of the original Cospas-Sarsat type approval, and as directed by the beacon manufacturer or one of its approved service centers. Use of after-market batteries not approved by the manufacturer (purchased, for example, from some on-line vendors) could result in inadequate beacon performance during an emergency.

    If you have questions about the maintenance of, or battery replacement for, your beacon, please consult the beacon manufacturer using contact information in the user manual.  You also may find contact information for beacon manufacturers on the “Contact Lists” tab of our Professionals home page.



This site is registered on wpml.org as a development site. Switch to a production site key to remove this banner.
